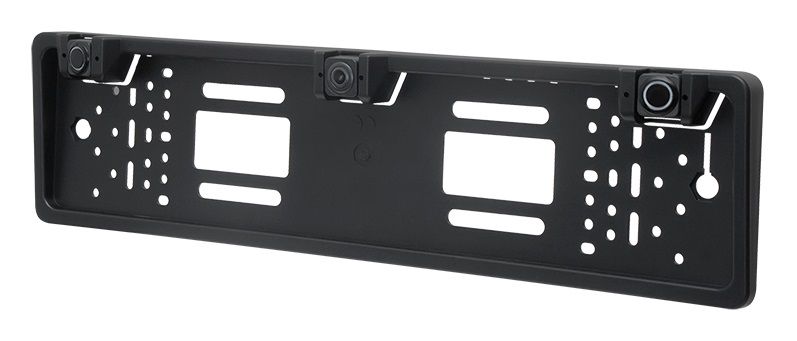

Automašīnas atpakaļskata kamera, iebūvēta numura zīmes rāmī ar 2 zonu parkošanas sensoriem

The reversing camera is a modern system designed for motor vehicles. It checks the space behind the vehicle during reversing procedures. The device assists during reversing, but does not relieve the driver from the special attention required during reversing. The set is adapted for mounting in passenger cars and delivery vans.

Specification:

Camera

- Image sensor: 1 / 3.6 in. CMOS
- Resolution: 648x488
- Measurement area: 4.9x3.7m
- Lens: F=1.9mm / F=2.0
- Signal system: PAL
- Horizontal synchronization (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Automatic gain control and backlight adjustment
- Horizontal definition: 480 TV lines
- Minimal lighting : 0.01 lux
- Signal / noise: <48.0 [dB]
- Image sensor angle: 170°
- Horizontal viewing angle: 120°
- Vertical viewing angle: 90°
- Diagonal angle of view: 165°
- Water resistance class: IP67
- Voltage range: 9-15Vdc

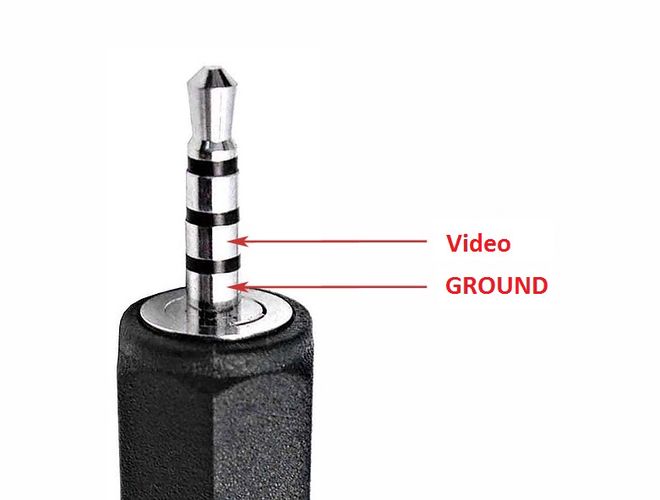

- Video output: 1.0Vp-p / 75Ω
- Working temperature: -20 ~ +70°C, RH 95% Max
- Storage temperature: -30 ~ +80°C, RH 95% Max

sensor

- Voltage range: 9-15Vdc
- Voltage: 12Vdc
- Power consumption: max. 1.5W
- Measurement area: 0.4-2.0m
- Alarm distance: 0-2m
- Display mode: any type of TFT
- Diameter of the sensor: 19mm
- Sensor angle : X, Y, 60 degrees
- Working temperature : -30°C ~ +80°C
- Alarm type : BIBI
- Alarm volume: 65dB
