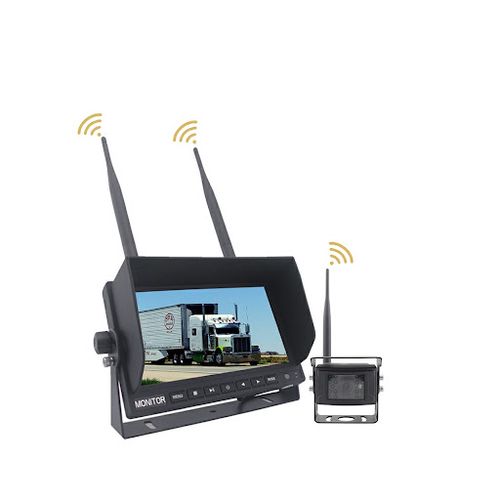

Bezvadu atpakaļskata novērošanas sistēma, kamera + monitors 7"
Kopā iegādātās preces
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru
Piegāde uz norādīto ar adresi ar kurjeru
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi
Piegāde uz DPD Paku skapi
2,50 €
Preces apraksts
Technical data
| 7" 720P AHD Quad Wireless Rear View System | |

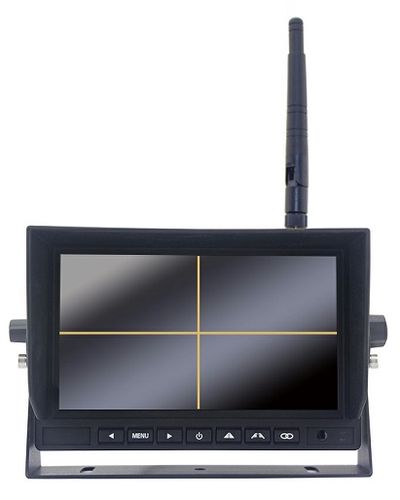

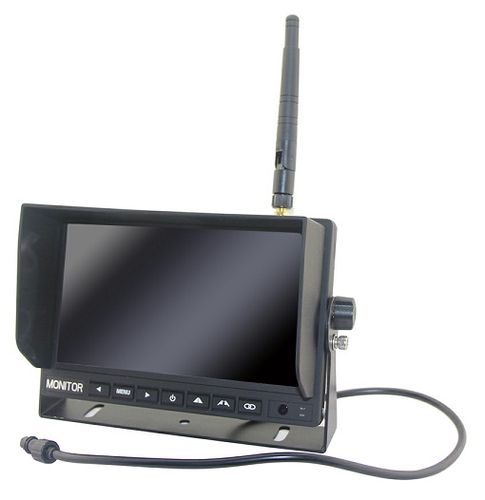

| 7″ 2.4G Digital Wireless Car Monitor | |
| Specifications | Model No.: CM-709MDW |
| Screen ratio | 16:9 IPS panel |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, 500 cd/m2 |
| Viewing angle | Hor. L(85º) R(85º) Ver. UP(85º) DOWN(85º) |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Power supply | DC 12-24V |
| loudspeaker | Without |
| Delay time | 120mS |
| Electric current | Standby: ≤10mA, Working≤110mA |
| Power consumption | ＜3W |
| AV input | 4 channel HD wireless video signal input |
| Operating frequency range | 2400 ~ 2483.5MHz * |
| System | PAL/NTSC automatically |
| Decompression mode | H.264 |
| Receive sensitivity | -89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission distance | 200m in open area |
| Shockproof level | 4G |
| Power cable | waterproof 2P BM connector |
| Weight | 0.54KG |
| Size | 180mm*121mm*24mm |
| Accessories | Power cord、U bracket、User manual、2.4G 5DB antenna、5m extension antenna |

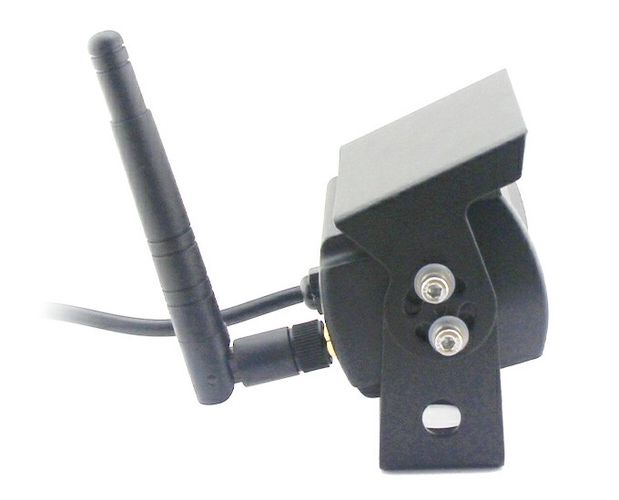

| AC-301WHD Digital Wireless Car Camera | |
| Model | AC-301MDW-4 |
| Image sensor | CMOS 1/2.7” |
| Pixel | 1280*720 pixels |
| Operating frequency range | 2400-2483.5MHZ |
| Transmission distance | 200M in open area |
| System | PAL/NTSC automatically |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| audio | Without |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing angle | Diagonal viewing angle 140°(Horizontal viewing Angle 120°) |
| Transmitting sensitivity | -89 dBm |
| Shell material | Black aluminium alloy |
| Size | 74*45.5*56.5MM |
| Accessories | Power cord、long U shaped bracket、Internal hexagonal wrench、5DB antenna |
| Weight | 0.35KG |
