Preces apraksts
Svars
0.056 kg.
Zīmols
Izmantojot šo adapteri, ir iespējams ar PoE-LAN starpniecību barot Raspberry Pi (visus modeļus) un citus vienas plates datorus, kas parasti tiek baroti, izmantojot microUSB. Tāpēc ierīci savieno, izmantojot PoE-LAN kabeli (kabeļa garums līdz 100 m), ar maršrutētāju/komutatoru, kas atbalsta PoE, vai PoE inžektoru.
PORTI
1x Micro USB barošanas kontaktdakša, 1x Rj45 izejas ports.
IEEJAS SPRIEGUMS
36 - 57 V (standarta PoE spriegums 48 V, 52 V)
IZEJAS SPRIEGUMS
LĪDZSTRĀVAS 5 V
IZEJAS STRĀVA
2 A
PĀRRAIDES ATTĀLUMS
10 - 100 m
POE PROTOKOLS
IEEE802.3af
TĪKLA JOSLAS PLATUMS
10/100 Mbps
KABEĻA GARUMS
205 mm
DARBA TEMPERATŪRA
-50 - 75 °C
Apraksts tiek tulkots, izmantojot automātiskās tulkošanas rīku. Ja pamanāt kādas neatbilstības, lūdzu, paziņojiet mums rakstot uz e-pastu [email protected].
Specifikācijas
Piegādātāja prece apraksts

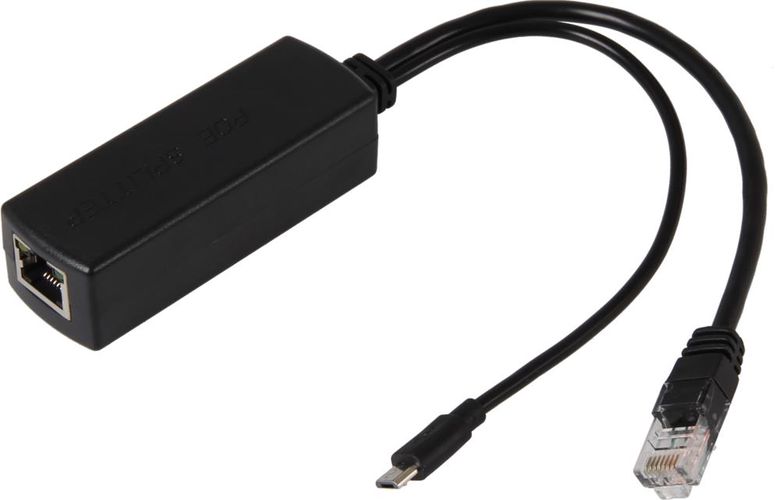

With this adapter is it possible to supply power via PoE-LAN to the Raspberry Pi (all models) and other singleboard-computer which are normally supplied via microUSB.
Therefore, the device is connected via PoE-LAN cable (up to 100m cable length) with a PoE capable router / switch or a PoE injector.
Therefore, the device is connected via PoE-LAN cable (up to 100m cable length) with a PoE capable router / switch or a PoE injector.
Technical data:
Model: Power over Ethernet—mUSB Poweradapter
Ports: 1x Micro USB power plug, 1x Rj45 output port
Input Voltage: 36 - 57V (standard PoE voltage 48V, 52V)
Output Voltage: DC 5 V
Output Current: 2 A
Transmission Distance: 10 - 100 m
PoE Protocol: IEEE802.3af
Network Bandwidth: 10/100 Mbps
Cable Length: 205 mm
Operating Temperature: -50 - 75 °C
