Kabelis UTP CAT6 4x2x0.55mm, viendzīslu, Varš, PVC Eca
Produkta nr.: KO/UTP6/E
TOP prece
Kopā iegādātās preces
Piegādes termiņi
Piegāde uz norādīto ar adresi ar kurjeru
Piegāde uz norādīto ar adresi ar kurjeru
Vairāk par 35,00 € (Pasūtījumi līdz 1000 kilogrami) | Bez maksas |
Līdz 35,00 € (Pasūtījumi līdz 1000 kilogrami) | 3,99 € |
Piegāde uz DPD Paku skapi
Piegāde uz DPD Paku skapi
Pēc preču nodošanas kurjeram mēs Jūs informēsim e-pastā. Bezmaksas piegāde pasūtījumiem virs 35 EUR.
2,50 €
Preces apraksts
Svars
0.0451 kg.
Zīmols
Basic product description

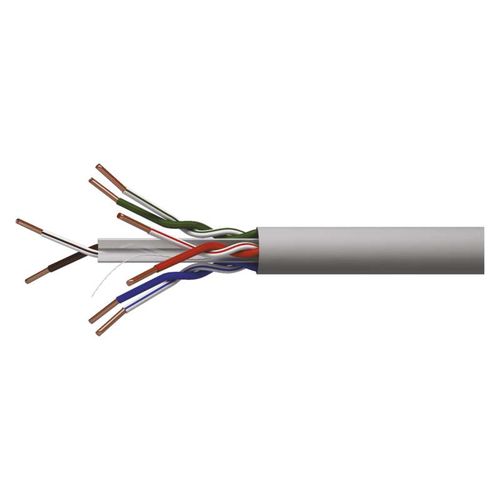

Unshielded horizontal cable of the highest quality, category CAT6 with PVC jacket. The cores of conductors are made of non-recycled copper. The cable meets the requirements of the construction products regulation (CPR).
Product parameters
| Product | UTP cable without connectors |
|---|---|
| Type | UTP CAT 6 PVC |
| Cable sheath | PVC |
| AWG | 23 |
| Sheath color | grey (RAL 7035) |
| Wire insulation | HDPE |
| Category | 6 |
| Maximum operating humidity | 93 % |
| Mounting temperature | +5 °C to +60 °C |
| Highest supported protocol | 1000 Base-TX (Gigabit Ethernet) |
| Jacket diameter | 6.3 mm |
| Jacket thickness | 1.1 mm |
| Inner conductor diameter | 0.55 mm |
| Conductor insulation thickness | 0.21 mm |
| Marking of cable | UTP CAT 6 PVC 1 – 305 m |
| Storage temperature | -20 °C to +60 °C |
| Shielding | no |
| Strength member | 150D nylon + PE cross |
| Reaction to the fire | Eca |

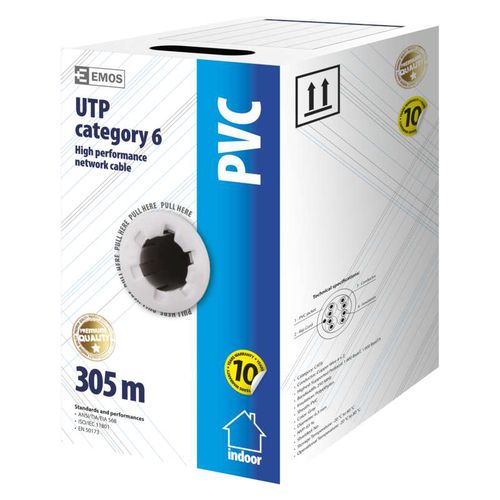

| Packaging | 305 m, paper box |
Noderīga informācija
Specifikācijas
Artikuls
320868
Svars
0.0451 kg.
Augstums, mm
240
Platums, mm
240
Dziļums, mm
400
Svītrkodi
8595025341426
Ekranēšanas tips
bez ekrāna (UTP)
Zīmols
Kabeļa krāsa
pelēks
kategorija
CAT6
Vadītājs
Cu
Kabeļu struktūra
viengyslis
NomNr
KO/UTP6/E
Piegādātāja prece apraksts
Product description
Unshielded horizontal cable of the highest quality, category CAT6 with PVC jacket. The cores of conductors are made of non-recycled copper. The cable meets the requirements of the construction products regulation (CPR).
Noderīga informācija
Piegādātāja preces parametri
AWG
23
cable sheath
PVC
cable structure
wire
category
6
conductor insulation thickness
0.21 mm
connector protection type
no
connectors
no
dangerous substances
none
designed for cable
not stated
highest supported protocol
1000 Base-TX (Gigabit Ethernet)
inner conductor diameter
0.55 mm
jacket diameter
6.3 mm
jacket thickness
1.1 mm
length
305 m
low smoke zero halogen (LSZH) coat
no
marking of cable
UTP CAT 6 PVC 1 – 305 m
material of the inner conductor
copper (Cu)
maximum operating humidity
93 %
mounting temperature
+5 °C to +60 °C
number of wires
8
packaging
305 m, paper box
product
UTP cable without connectors
reaction to the fire
Eca
sheath color
grey (RAL 7035)
shielding
no
storage temperature
-20 °C to +60 °C
strength member
150D nylon + PE cross
type
UTP CAT 6 PVC
use
not stated
warranty period
20 years
wire insulation
HDPE
Informācija, ko sniedz piegādātājs var atšķirties no paša produkta. Ja pamanījāt nesakritības lūdzam ziņot mums rakstot uz [email protected].
